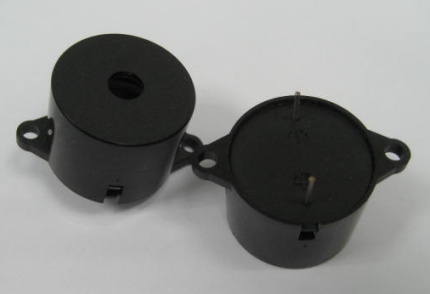

Home >> Piezo Buzzer  > Self Drive >  AZ-2337S-P
Piezo



External Drive Self Drive SMD Element



Piezo Buzzer Piezo Transducer

Items   Units Specifications Conditions
1 Rated Voltage VDC 12
2 Operating Voltage VDC 3-16
3 Rated Current mA(Max) 9 At 12 VDC
4 Sound Output At 30cm dBA(Min) 90 At 12VDC
5 Resonant Frequency Hz 3700±500
6 Operating Temp. -20 ~ +60
7 Storage Temp. -30 ~ +70
8 Tone Nature   Single
9 Weight g 5
Data Sheet
