| ITEM |
|
CONDITION |
| 1 |
Type. |

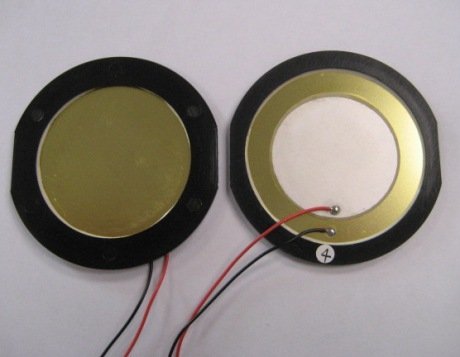

External -drive type sound element |
| 2 |
Rated Voltage (Square Wave) |
10 Vp-p |
| 3 |
Operating Voltage |
1 -25 Vp-p |
| 4 |
Resonant Frequency (KHz) |
1.4± 0.5 at 25± 2℃, 45~60% RH |
| 5 |
Min Sound Output at 1.4KHz |
65dB at 10cm/10p-p Square Wave |
| 6 |
Capacity (pF) |
50000±30% at 120Hz |
| 7 |
Operating Temperature (℃) |
-20 ~ +60 |
| 8 |
Storage Temperature (℃) |
-30 ~ +70 |
| 9 |
Weight |
1.0g |
